Durabase FGT

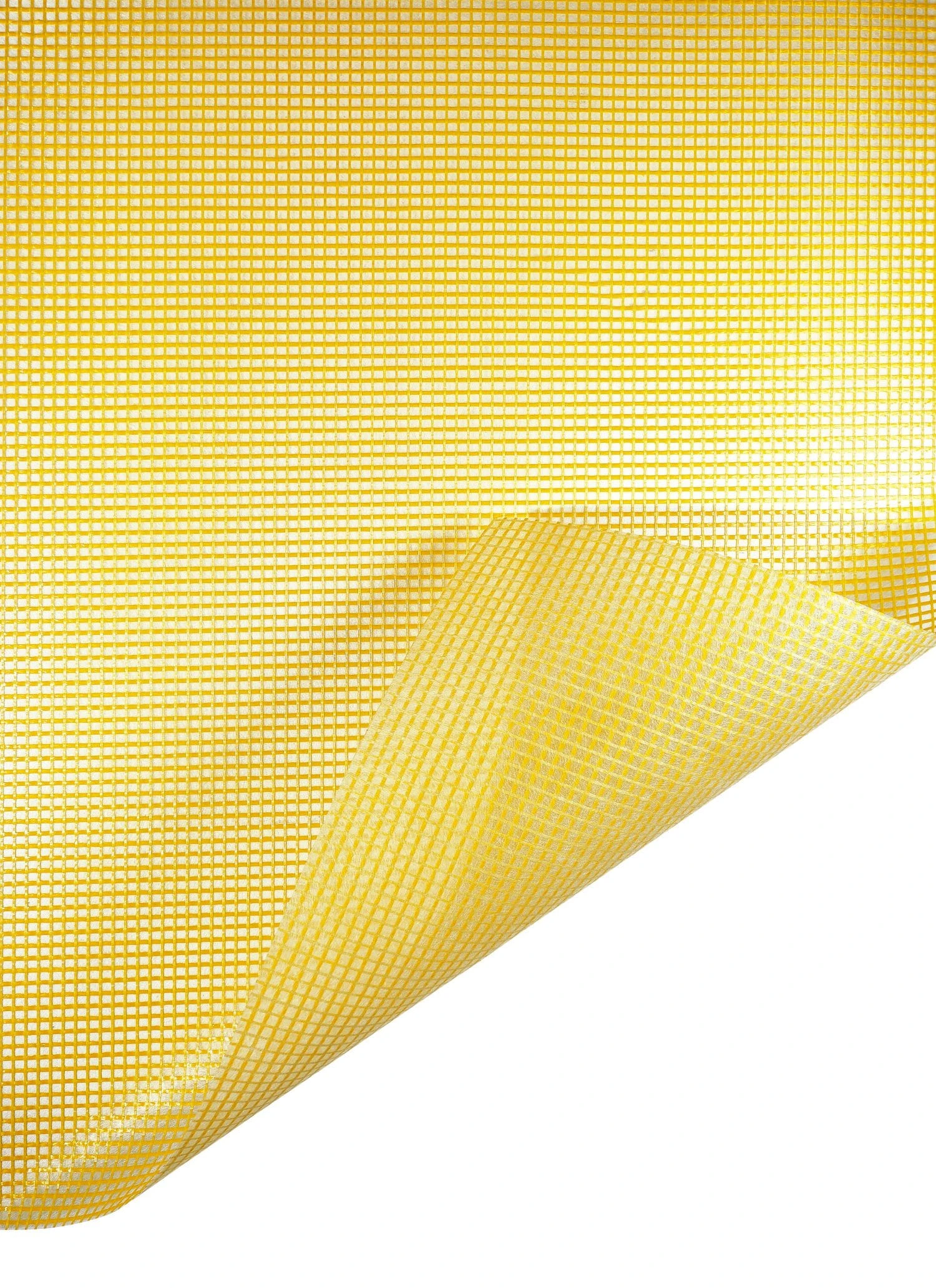

DURAL Durabase FGT Matting

Need to reinforce the floor and dont have the floor height? If you normally use crack matting or cement boards the Durabase FGT is the perfect solution at only 3.5mm thick including adhesive. It can be installed on cracked floor screed, OSB boards and older floor types.

DURABASE FGT is the latest generation of reinforcement mats, which thanks to the choice of materials and their construction, guarantee maximum strength yet at the same time are flexible enough to compensate for any stress which may occur. This makes it the safe choice for all types of floor coverings that need to be installed on substrates with insufficient load-bearing characteristics. It is suitable for large-format tiles and modern designer floor coverings, for directly glued carpeting or natural stone floor coverings.

Installation
Place the DURABASE FGT mat cut to size with the non-woven material side down onto the adhesive layer and press firmly. Lay the mats end to end. Set the joints of adjacent mats at the mat end with an offset of at least 30 cm. You do not need to cover the seams. To avoid friction on the connections, maintain open end joints of 5 – 10 mm.

Benefits

• Material thickness of only 1.5 mm
• Loads of up to 15,500 N (measurement D = 2.25 cm)
• Adhesive tensile strength of 1.1 N/mm²
• Bending strength of 400,000 cycles at a deflection of 1.8 mm

Durabase FGT technical data: DURABASE_FGT_Techn_Datenblatt_0918_EXP_04
